Grid Rig 300MCS
300 kWh mobile megawatt charging system

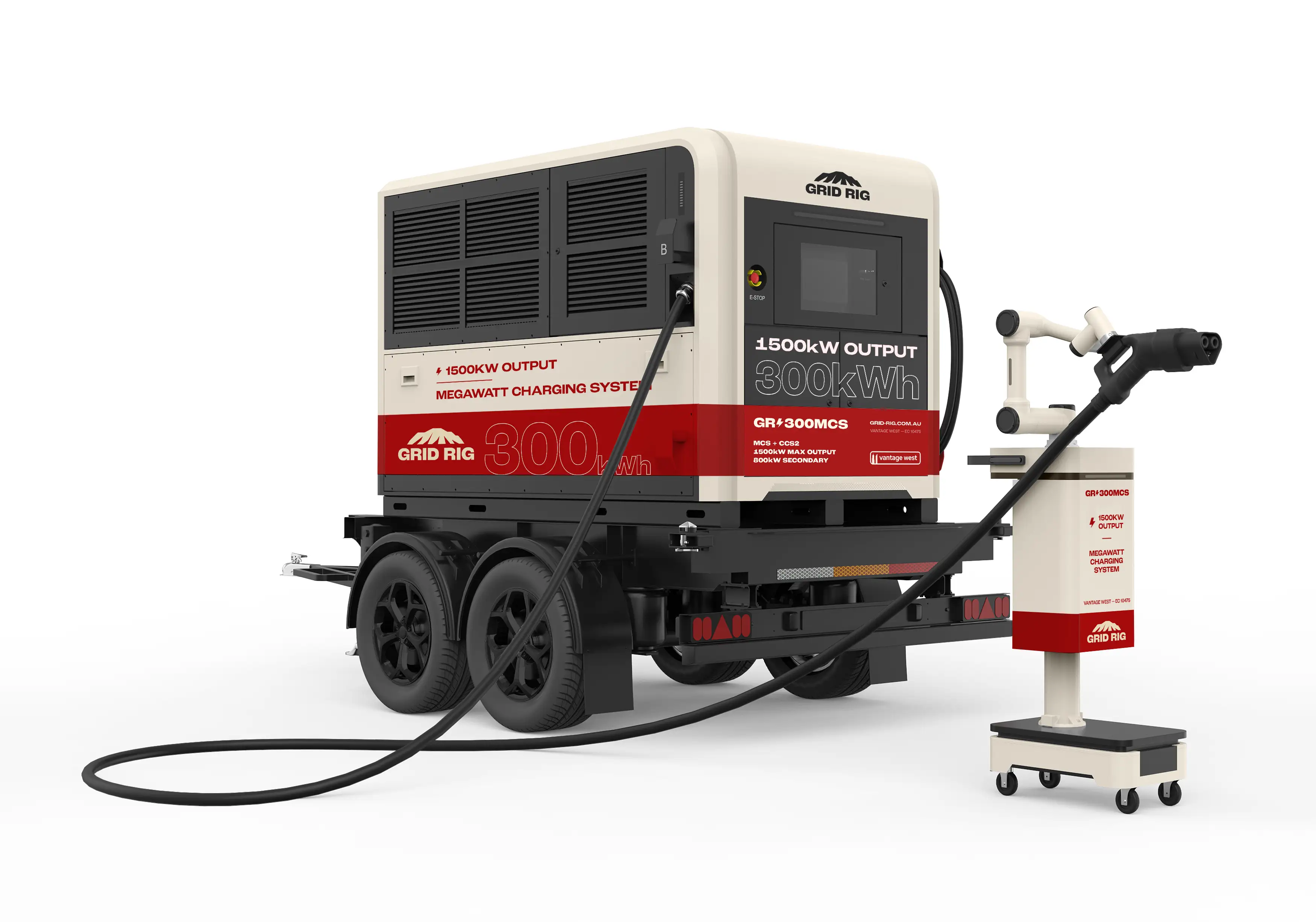

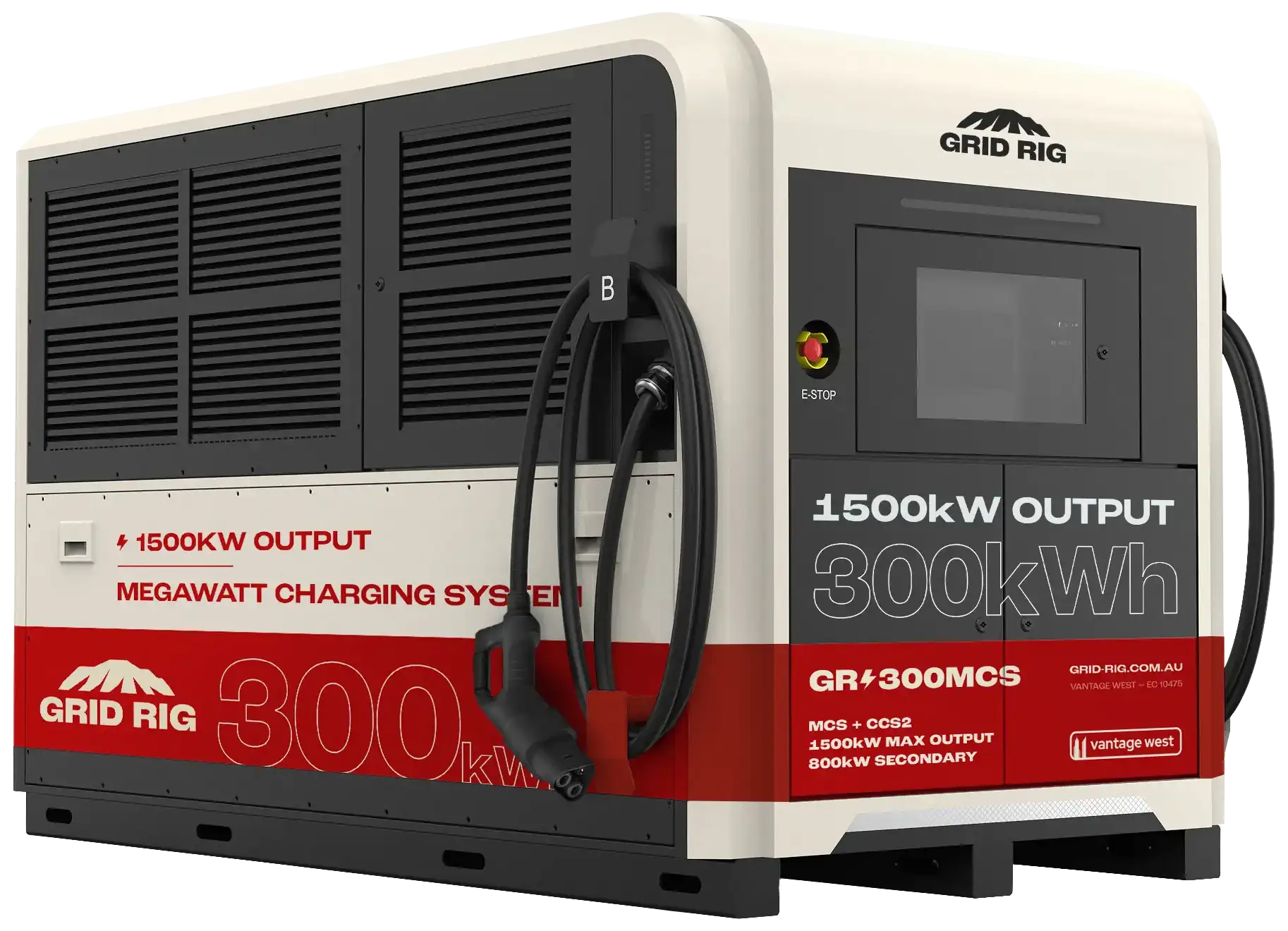

The Grid Rig 300MCS is an industrial-grade mobile battery energy storage system built for high-demand applications. Delivering 300kWh of LFP battery storage and up to 1.5MW MCS charging output, it provides ultra-fast, grid-independent power for heavy-duty electric equipment in remote and challenging environments. Featuring dual charging outputs of 1.5MW MCS and 800kW liquid-cooled DC, a 200–1000VDC operating range, over 5,000 battery cycles, and optional CCS2 compatibility, the GR 300MCS enables rapid deployment, reduced downtime and greater operational flexibility for electrified fleets.
200-1000 Vdc
Charging output voltage range
1500kW
Dual gun output
Size
3000 x 1500 x 2000mm
5,000 kg
Battery size
300kWh
1500kW
Max Output
Technical Specifications
Battery Size
300kWh
Max Output
1500kW
Specifications
Model ID
GR 300MCS
Battery pack capacity
300kWh
Battery pack voltage
-
Charging cables
1500kW x 1 (1.5MW MCS), 800kW x 1 (CCS1/CCS2 Plug optional) 7m
Max charging output (single)
1500kW
Max charging output (multi)
1500kW
Charging guns (up to)
Two
Charging output voltage range
200-1000 Vdc
Communication protocol
OCPP1.6J
DC energy replenishment
200A (CCS Charging dock optional)
Current output
100kW Indust. sockets (400V 63A x 2, 230V 16A x 1)
AC replenishment method
63A x 2 (Industrial socket)
Operating temperature range
-10 — 60°C
Ingress protection ratings
Overall machine IP54 / energy storage IP67
Battery life cycle
LFP, >5000 Cycles
Thermal management
Liquid cooling
Device Interface
15.6-Inch touchscreen (HMI)
Housing construction
Sheet metal
Size (L x W x H)
3000 x 1500 x 2000mm
Weight
5,000 kg
Applications & use cases
Mining & Construction
Discover tailored EV charging solutions for mining & construction. Power your electric vehicles with robust infrastructure in rugged environments..
Fleet Operations & Transport
The leading fleet EV charging solutions. Scalable fleet EV charging infrastructure for commercial fleets—charge electric vehicles, buses, and trucks.
Plant Hire & Heavy Machinery
Plant hire EV charging solutions. Rent electric vehicle charging stations. Future-proof your fleet with EV ready infrastructure for electric cars.
Excavator & Equipment Suppliers
Support electric equipment sales with mobile charging solutions. Help customers overcome charging barriers with packages for excavators and machinery.
Off-grid Hybrid Systems
Explore reliable off-grid power solutions with battery power and solar systems. Specializing in off-grid solar systems and grid-tie setups.
Ports & Wharves
Electrify maritime port infrastructure with port electrification solutions. Reduce emissions and environmental impact and create a sustainable grid.
Mine spec available
Megawatt Charging for Industrial Operations
Built around next-generation Megawatt Charging System (MCS) technology, the GR 300MCS is designed to support the rapid electrification of heavy industry. With up to 1.5MW of charging power, it can significantly reduce charging times for large electric assets such as mining equipment, haul trucks, construction machinery, port vehicles and heavy transport fleets.
THE TECH
Smart Technology
Smart Control for Liquid Cooling and Heating
Intelligent cooling and heating system is designed to maintain optimal operating temperatures for the entire system, ensuring stability and efficiency in any environment. When the ambient temperature reaches a pre-set threshold, the system automatically activates either cooling or heating mode.
This intelligent temperature regulation ensures that the system remains within a normal operating temperature range, enhancing reliability and longevity. Whether in extreme cold or heat, the system provides a robust solution for maintaining peak performance.
Fire safety
Battery Compartment Protection
Advanced fire safety measures are in place to effectively mitigate potential fire risks in the battery compartment.
Electrical Compartment Fire Safety
Advanced fire safety measures are in place to effectively mitigate potential fire risks in the battery compartment.
Flame Retardant Insulation
Flame retardant insulation on the metal top acts as an additional heat and fire barrier, improving overall safety.
Firefighting System
A built-in firefighting system automatically activates during a fire, minimising damage and ensuring safety.
